Coal Tar Epoxy #111

Coal Tar Epoxy #111 is a two-pack rust preventing Coal Tar Epoxy paint

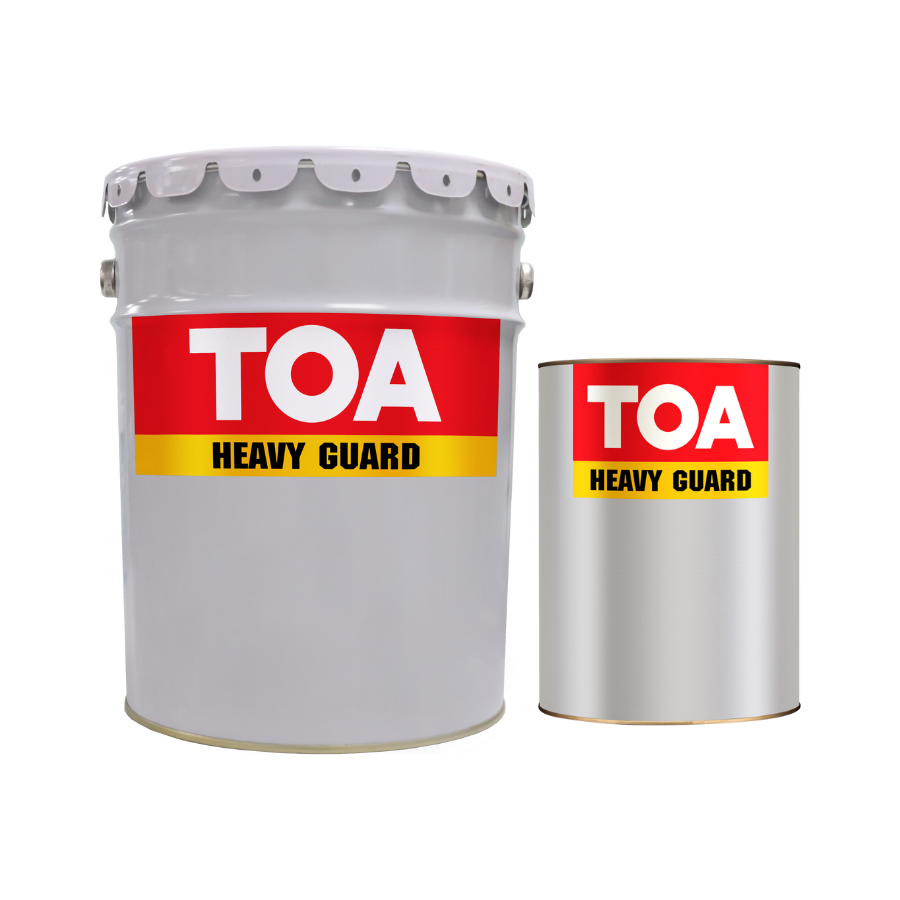

Packaging size:
Coal Tar Epoxy #111 Part A 4 GL (15.14 L)
Coal Tar Epoxy #111 Part B 1 GL (3.785 L)

View DetailCompact

Intended use:

Coal Tar Epoxy #111 is used as a rust preventing Coal Tar Epoxy for protective coating of tank interior, concrete, steel and underwater area. It has excellent resistance to chemicals, salt water, crude oil and diluted acids.

Technical Data

  • Type: High build rust preventing Coal Tar Epoxy
  • Color: Black and Brown
  • Paint film appearance: Semi - Gloss
  • Specific gravity: 1.5 ± 0.05
  • Solid by volume: 68 ± 2 %
  • Flash point: 25ºC
  • Surface temperature 35ºC & dry film thickness (DFT) 125μm:
  • - Touch dry: 40 minutes
  • - Hard dry: 8 hours
  • - Recoat: min. 8 hours. Actual drying time and painting interval time may be longer or shorter than provided data, depending on environmental temperature, dry film thickness, ventilation, humidity and number of coatings applied, etc.

Construction methods

  • Application Method: Airless Spray Air Spray Brush/ Roller

Construction Guide

Mixing Ratio:

+ By volume Part A 4 Part B 1

+ By weight Part A 5.5 Part B 1

Diluted by TOA Thinner #31

Stir well Part A and Part B separately.

To ensure painting system achieves drying time and designed physical properties, recommended mixing ratio should be strictly followed.

Gradually pour Part B into Part A, stir well in 2 – 3 minutes with dedicated stirrer until homogeneous. Leave the mixture for stabilization in 5 minutes before applying.

Recommended paint system

Protective Coating and Concrete Protective Coating:

Primer & Topcoat Coal Tar Epoxy#111 - 125 microns x 2 coats
